AC collection panels for solar
Part of the Vishtech Power product range.
AC collection panels for solar

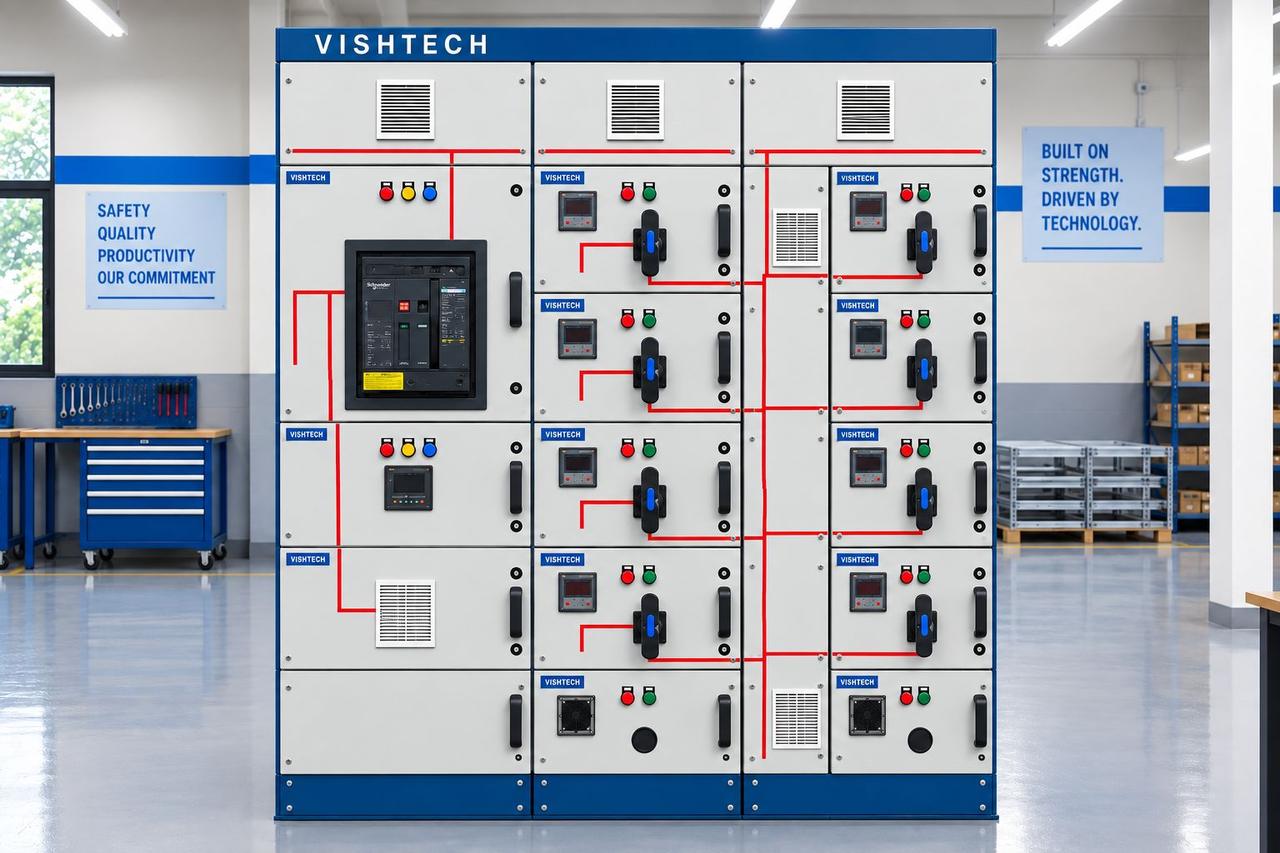

Manufactured at our switchboard works, Phagan Majara, PatialaCollects the AC output of string and central inverters and delivers it to the step-up transformer, LV busduct or plant main board — feeder protection, metering and the outgoing breaker engineered as one scheme with the rest of the package.
| Configuration | MCCB incomers, one per inverter · ACB outgoing to transformer LV side · bus coupler and metering sections as required |
|---|---|
| Rating | Up to 6300 A, aluminium or copper busbar |
| System voltage | 415 V AC, 3 phase, 50 Hz · other inverter output voltages to order, up to 1000 V |
| Standard | Design-verified assembly to IEC 61439-1 & 2 · Form 2b to 4b |
| Fault rating | Selected against the prospective fault level at the transformer LV side |
| Protection | IP42 to IP55 indoor · IP65 outdoor, with canopy and anti-condensation heating |
| Monitoring | Multifunction metering per feeder · surge protection · RS-485 / Modbus to plant SCADA |
